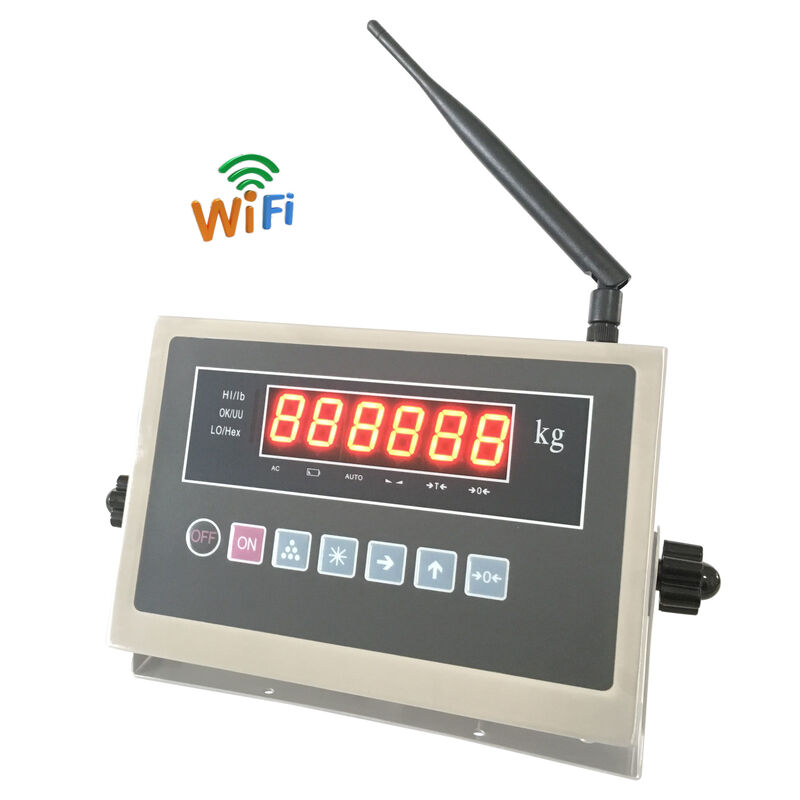

WiFi-Enabled Digital Indicator BXK315A1RB-W – TCP/IP Connectivity

제품 상세정보

원래 장소: 중국

브랜드 이름: Brans

모델 번호: BXK315A1RB-W

지불과 운송 용어

최소 주문 수량: 1 PC

배달 시간: 일주일

지불 조건: 티/티

공급 능력: 300pcs/월

최고의 가격을 얻으십시오
강조하다:

WiFi-enabled weighing indicator

,

digital indicator with TCP/IP

,

BXK315A1RB-W wireless weighing indicator

주택:
스테인레스 스틸
표시하다:
6자리, 20.2mm 빨간색 LED
로드셀 드라이브:
4 x 350Ω 또는 8 x 700Ω
통신(표준):
RS-232 직렬
치수:
265×162×58mm
배터리 수명:
최대 30시간(완전 충전)
포인트 설정:
로-오-하이
커뮤니케이션 방향:
단방향 / 양방향(옵션)
단위:
kg, lb(선택 가능)
커뮤니케이션 프로토콜:
모드버스 ASCII
연결성:
WiFi(WAN/LAN), TCP/IP
주택:
스테인레스 스틸
표시하다:
6자리, 20.2mm 빨간색 LED
로드셀 드라이브:
4 x 350Ω 또는 8 x 700Ω
통신(표준):
RS-232 직렬
치수:
265×162×58mm
배터리 수명:
최대 30시간(완전 충전)
포인트 설정:
로-오-하이
커뮤니케이션 방향:
단방향 / 양방향(옵션)
단위:
kg, lb(선택 가능)
커뮤니케이션 프로토콜:
모드버스 ASCII
연결성:
WiFi(WAN/LAN), TCP/IP
WiFi-Enabled Digital Indicator BXK315A1RB-W – TCP/IP Connectivity

Features


    1. This advanced weighing indicator is built for operation from 0°C to 40°C.

    2. The indicator ensures safe storage in temperatures ranging from -25°C to 55°C.

    3. Engineered for resilience, this weighing indicator tolerates relative humidity up to 85% non-condensing.

    4. Designed for mobility, the indicator provides up to 30 hours of use on a full battery charge.

    5. This versatile weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

    6. Flexible data management is offered through manual and automatic accumulation on this indicator.

    7. Long-term accuracy is secured by the programmable zero tracking function of the weighing indicator.

    8. The indicator features a programmable digital filter for superior signal stability.

    9. User convenience is enhanced with selectable kg and lb units on this weighing indicator.

    10. Specialized applications like animal weighing are fully supported by this indicator.

    11. A practical hold function on the weighing indicator allows for stable reading capture.

    12. Efficient parts management is facilitated by the counting function of this indicator.

    13. As a TCP/IP weighing indicator, it features integrated WiFi for WAN/LAN connectivity.

    14. This smart weighing indicator uses the Modbus ASCII protocol for flexible unidirectional or bidirectional communication.


Dimensions(mm)



265×162×58mm


Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:


  1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
  2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
  3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
  4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
  5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
  6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
  7. We will arrange shipment through a reputable logistics service provider.


After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
