제품 상세정보
원래 장소: 중국
브랜드 이름: Brans
모델 번호: WL-121
문서: WL-121 Bending Beam Load Ce...NS.pdf
지불과 운송 용어
최소 주문 수량: 1개
배달 시간: 일주일
지불 조건: 티/티
공급 능력: 800 PC / 달
용량: |
50/100/200/300/500/1000kg |
종합 오차: |
0.017%FS |
비선형 성: |
0.017%FS |
반복성: |
0.01%FS |
정격 출력: |
2.0±0.002MV/V |
제로 밸런스: |
1%mV/V 이하 |
절연저항: |
5000mΩ/100VDC |
재료: |
스테인레스 스틸 |
안전한 과부하: |
150%F.S. |
보호 등급: |
IP67 (사용자 정의 가능) |
작동 온도.: |
-40~65°C |
케이블 크기: |
Ф6.3x2500mm(맞춤형) |
용량: |
50/100/200/300/500/1000kg |
종합 오차: |
0.017%FS |
비선형 성: |
0.017%FS |
반복성: |
0.01%FS |
정격 출력: |
2.0±0.002MV/V |
제로 밸런스: |
1%mV/V 이하 |
절연저항: |
5000mΩ/100VDC |
재료: |
스테인레스 스틸 |
안전한 과부하: |
150%F.S. |
보호 등급: |
IP67 (사용자 정의 가능) |
작동 온도.: |
-40~65°C |
케이블 크기: |
Ф6.3x2500mm(맞춤형) |

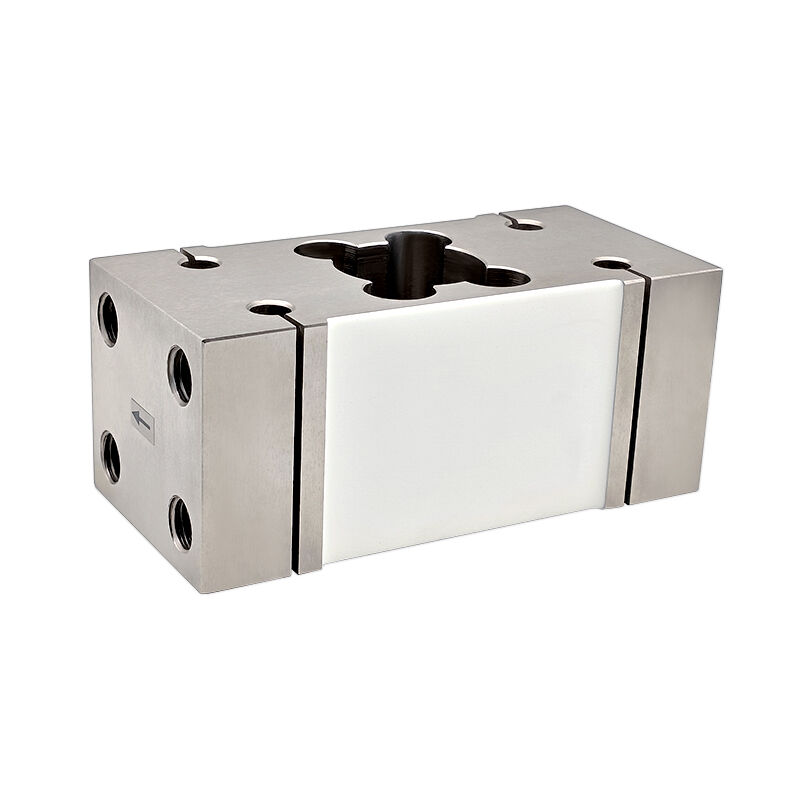

WL-121 – Stainless Steel Bending Beam Load Cell
Product Description
The WL-121 is a stainless steel bending beam load cell designed for precision weighing in demanding environments. With maximum capacity options ranging from 50kg to 1000kg, it delivers reliable performance for industrial applications. The compensated off-center load error ensures accuracy even with larger platform sizes, supporting maximum platform dimensions of 800×1000mm.
Features & Applications
Bending beam load cell construction
Made of stainless steel for durability and hygiene
Maximum capacities: 50kg, 100kg, 200kg, 500kg, 1000kg
Compensated off-center load error
Supports platform sizes up to 800×1000mm
Mainly used in food, beverage, pharmaceutical, and other special fields
Also suitable for belt scales, platform scales, and other electrical weighing devices
Specifications
| Capacity | 50/100/200/300/500/1000kg |
| Combined Error | 0.017%F.S. |
| Non-linearity | 0.017%F.S. |
| Repeatability | 0.01%F.S. |
| Rated Output | 2.0±0.002mV/V |
| Zero Balance | ≤1%mV/V |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Stainless Steel |
| Safe Overload | 150%F.S. |
| Protection Class | IP67(Customizable) |
| Operation Temp. | -40~65°C |
| Cable Size | Ф6.3x2500mm(Customizable) |
Dimensions(mm)
Load direction
Wiring code
Shipping & Packaging
To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.
Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
