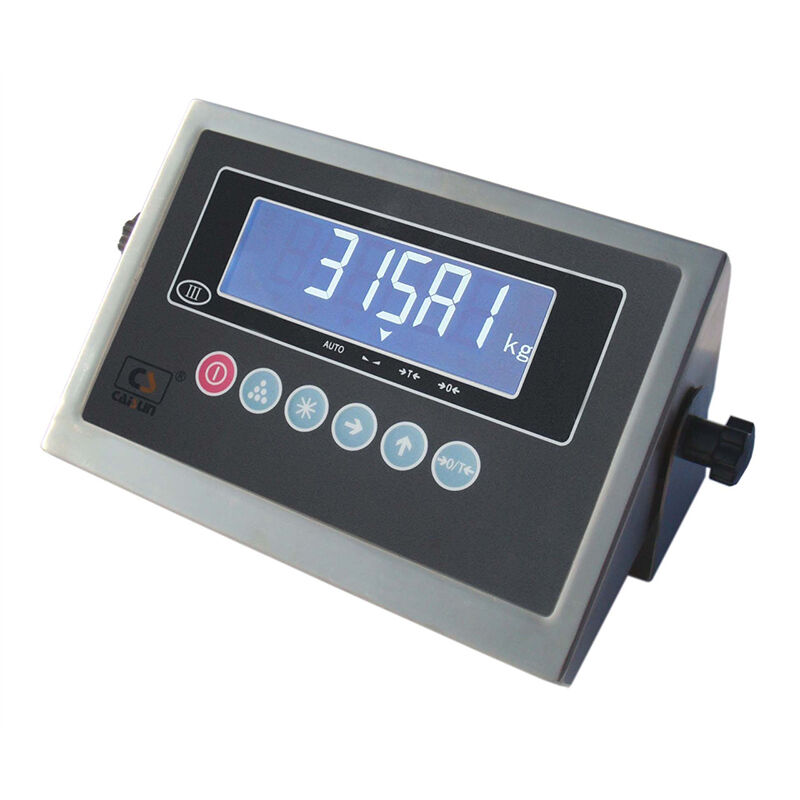

Weighing Indicator BXK315A1-11 Electronic Plaform Scale And Weighing Scale

Features

• 1. This advanced weighing indicator provides 10 V/m immunity to radiated electromagnetic fields.

  2. Featuring a 6-digit 25.4mm LCD display, this indicator offers clear weight readings.

  3. The weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

  4. With 5V load cell excitation voltage, this indicator ensures stable performance.

  5. This indicator supports connection to both 4-wire and 6-wire load cells.

  6. The digital weighing indicator features 1,000,000 internal ADC counts for high precision.

  7. This weighing indicator allows quick recalibration due to environmental changes.

  8. Manual and automatic weight accumulation functions are integrated into this indicator.

  9. Automatic zero tracking capability enhances the weighing indicator's accuracy.

  10. The indicator includes RS-232C/RS-485 interface with continuous data output.

  11. An RS-232C serial printer interface is built into this weighing indicator.

  12. High resolution (×10) display functionality improves this indicator's readability.

  13. This weighing indicator provides HI/OK/LO set point control.

  14. Low battery warning function protects the indicator's operation.

Dimensions(mm)

265×222×161mm

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
7. We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
