Brans Measuring And Controlling Technology Co., Ltd
상품
상품
> 상품 > 무게를 단 지표 > BXK315A1-7 Large Display Weighing Indicator With Multi-Function Capabilities

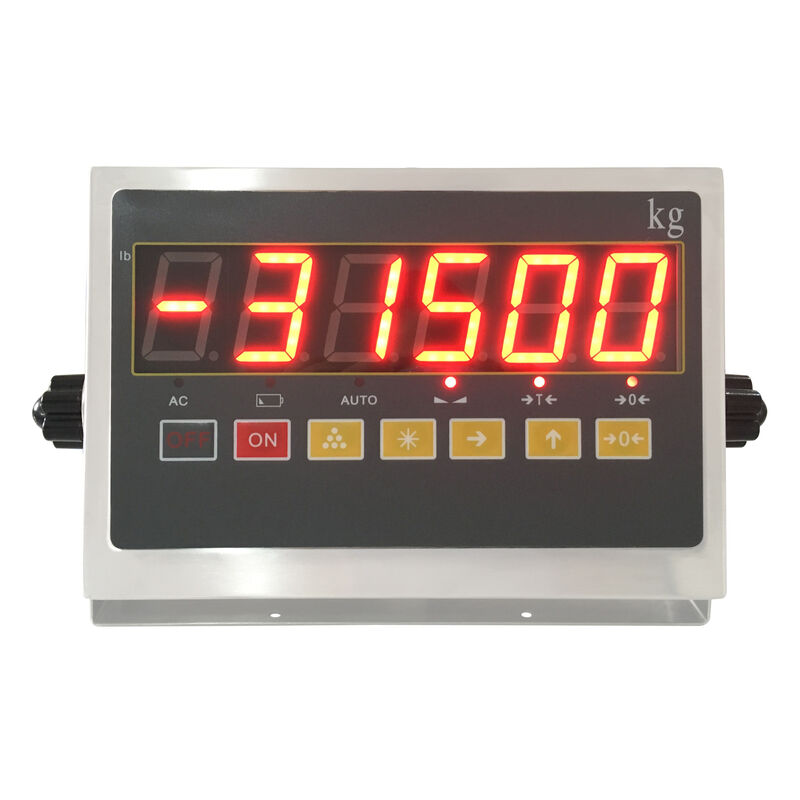

BXK315A1-7 Large Display Weighing Indicator With Multi-Function Capabilities

제품 상세정보

원래 장소: 중국

브랜드 이름: Brans

모델 번호: BXK315A1-7

지불과 운송 용어

최소 주문 수량: 1 PC

배달 시간: 일주일

지불 조건: 티/티

공급 능력: 300pcs/월

최고의 가격을 얻으십시오
강조하다:

large display weighing indicator

,

multi-function weighing indicator

,

weighing indicator with warranty

주택:
스테인레스 스틸
표시하다:
6자리, 38mm 빨간색 LED
로드셀 드라이브:
4 x 350Ω 또는 8 x 700Ω
의사소통:
RS-232C 시리얼
단위:
kg, lb(선택 가능)
전원 경고:
배터리 부족 경고
치수:
265×222×161mm
응용:
전자 플랫폼 저울, 체중계
배터리 수명:
최대 30시간(완전 충전)
주택:
스테인레스 스틸
표시하다:
6자리, 38mm 빨간색 LED
로드셀 드라이브:
4 x 350Ω 또는 8 x 700Ω
의사소통:
RS-232C 시리얼
단위:
kg, lb(선택 가능)
전원 경고:
배터리 부족 경고
치수:
265×222×161mm
응용:
전자 플랫폼 저울, 체중계
배터리 수명:
최대 30시간(완전 충전)
BXK315A1-7 Large Display Weighing Indicator With Multi-Function Capabilities

Features


    1. This reliable weighing indicator operates within a temperature range of 0°C to 40°C.

    2. The indicator can be stored safely in temperatures from -25°C to 55°C.

    3. Designed for durability, this weighing indicator handles relative humidity up to 85% non-condensing.

    4. For mobile use, the indicator provides up to 30 hours of operation on a full battery charge.

    5. The weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

    6. Flexible data handling is offered through manual and automatic accumulation on this indicator.

    7. Accuracy is maintained with programmable zero tracking in the weighing indicator.

    8. Signal stability is enhanced by the programmable digital filter of this indicator.

    9. The weighing indicator supports selectable units (kg and lb) for international use.

    10. Connectivity is provided via an RS-232 serial interface on this indicator.

    11. Measurement precision can be increased tenfold using this advanced weighing indicator.

    12. Specialized modes like animal weighing are supported by this versatile indicator.

    13. A hold function allows for stable reading capture on the weighing indicator.

    14. This indicator includes a practical counting function for inventory management.

    15. Direct printing is facilitated by the integrated printer interface of this weighing indicator.

Dimensions(mm)



265 × 162 × 74 mm



Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:


  1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
  2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
  3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
  4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
  5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
  6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
  7. We will arrange shipment through a reputable logistics service provider.


After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
